Bracket Assembly Instructions

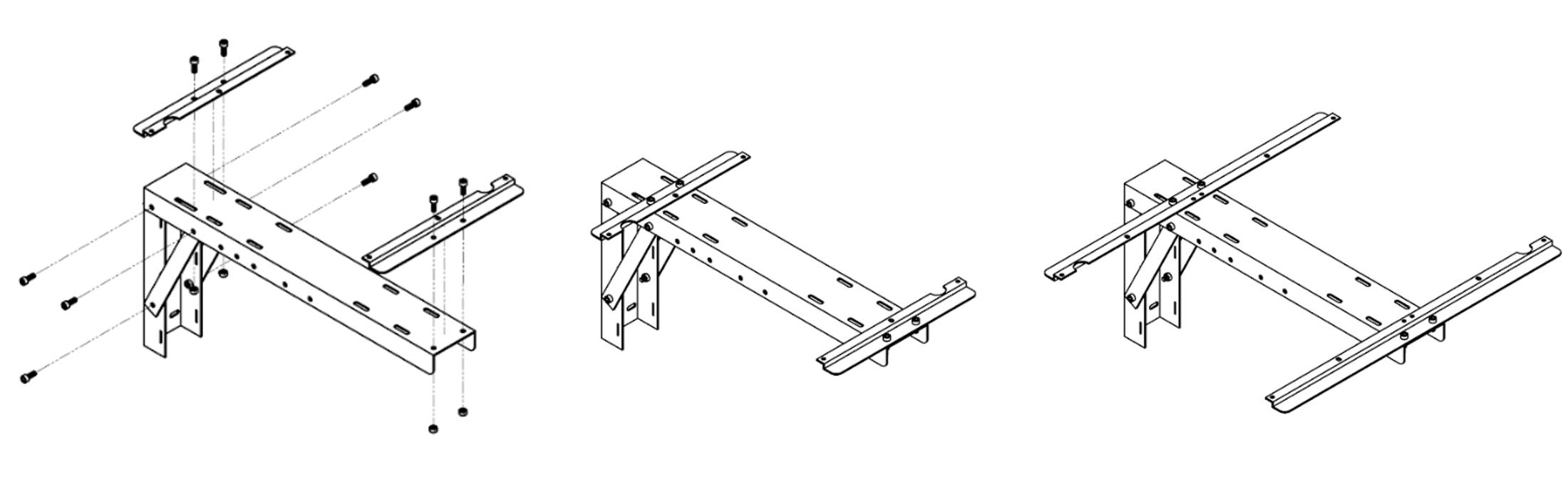

Technical Drawing
Attach a Voltaic 17 to 50 Watt solar panel to any vertical pole or pipe. Rugged 2mm aluminum u-channel design is built to withstand high winds and rough conditions. Recommended configurations:
- 1 x 50 Watt (P150) - no additional accessories required
- 1 x 25 Watt (P152) - no additional accessories required
- 1 x 20 Watt (P120) or 17 Watt (P117) - choose short crossbar
- 2 x 20 Watt (P120) or 17 Watt (P117) - choose long crossbar
- Pole mounting steel straps or U-bolts not included
Downloads
Features
- Material: 2.5mm aluminum 5052
- Weight: 1,000g
- Angle from Horizontal: Adjustable from 0 to 90
Attach a Voltaic 17 to 50 Watt solar panel to any vertical pole or pipe. Rugged 2mm aluminum u-channel design is built to withstand high winds and rough conditions. Recommended configurations:
- 1 x 50 Watt (P150) - no additional accessories required
- 1 x 25 Watt (P152) - no additional accessories required
- 1 x 20 Watt (P120) or 17 Watt (P117) - choose short crossbar
- 2 x 20 Watt (P120) or 17 Watt (P117) - choose long crossbar
- Pole mounting steel straps or U-bolts not included
Downloads
Features
- Material: 2.5mm aluminum 5052
- Weight: 1,000g
- Angle from Horizontal: Adjustable from 0 to 90
Voltaic Solar Panels:
- 20 Watt 6 Volt Panel, 17 Watt 18 Volt Panel, or 50 Watt 18 Volt Panel
- Connect to bracket using the embedded screw and ABS postnut.
- View all Small Solar Panels
