20 Watt AxON Solar System

$233.00
SKU:
K-P120-V75
(0) Write a Review
SKU:
K-P120-V75
Out of stock. K-P120-V75 is expected to be back in stock on June 20th
Backorder email signup below.
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 or above and get 5% off

We have sold out of our initial production run, please sign up for the waitlist for the next batch. The 20 Watt AxON Solar System is a seamless outdoor power supply, ready to use out of the box. The solar panel and V75 battery are integrated onto a custom mounting bracket.

The system is designed for 5V devices with power consumption up to 1 Watt continuous. The base system includes:
  • Waterproofed V75 USB battery pack (20,100mAh 72Wh)
  • 20 Watt high-efficiency solar panel
  • Universal bracket mount
  • Output cable that provides power and battery voltage data
Size and Weight
  • Solar Panel: 43.6 x 27.4 x 0.4 cm
  • Waterproof Battery: 16.7 x 9.5 x 3.7 cm
  • Bracket: 33.7 x 27.4 x 0.25 cm
  • Total Weight: 1.8kg
Battery
  • Capacity: 20,100mAh, 72Wh
  • Output: 5V/2A via waterproof M8
  • Input: 5V/2A (Female 3.5x 1.1mm)
  • Battery Type: Li-Ion NMC
  • Protection: Short circuit over charge, over discharge, over temperature (45°C input, 60°C output cutoff), under temperature (0°C input, -15°C output cutoff)
  • Always On Feature: Output remains on / recovers to power IoT devices
Solar Panel

Expected power output varies based on time of year, local weather conditions, orientation of panel, and shading factors.

Bracket
  • BK103 - Large Solar Panel Bracket with horizontal and vertical pipe mounting options27.
Other Included Items
  • M8 to bare leads
  • or M8 to USBC
Battery Voltage Monitoring

Analog voltage of the battery cells is available on both power cables and can provide battery cell voltage which can be used to gauge battery state of charge. If using the USB-C cable, the voltage is available on the SBU pins and explained in this blog post. If using the bare leads cable, the yellow and white leads provide the same information when connected to ground.

  • AxON 20 Watt Solar System Front

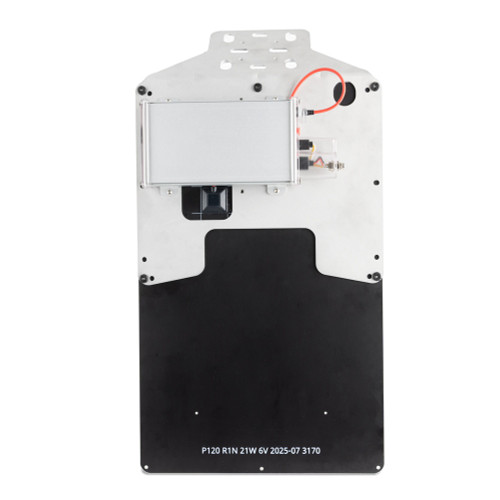

  • AxON 20 Watt Solar System Back

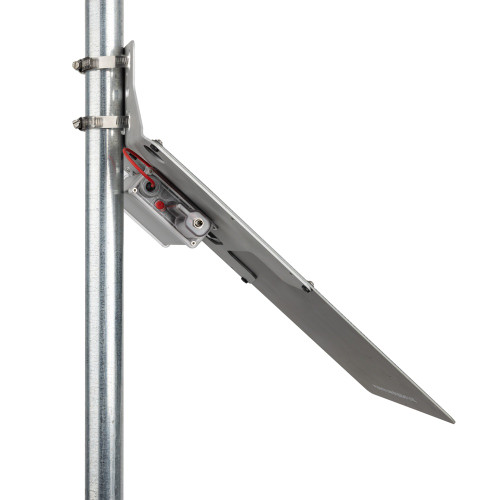

  • AxON 20 Watt Solar System Side
  • AxON Wire Setup
