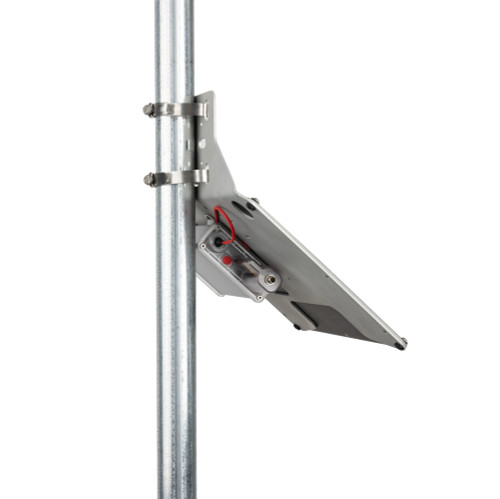

The 10 Watt AxON Solar System is a seamless outdoor power supply, ready to use out of the box. The solar panel and V75 battery are integrated onto a custom mounting bracket.
The system is designed for 5V devices with power consumption up to 1 Watt continuous. The base system includes:
- Waterproofed V75 USB battery pack (20,100mAh 72Wh)
- 10 Watt high-efficiency solar panel
- Universal bracket mount
- Output cable that provides power and battery voltage data
Size and Weight
- Solar Panel: 22.3 x 27.4 x 0.4 cm
- Waterproof Battery: 16.7 x 9.5 x 3.7 cm
- Bracket: 33.7 x 27.4 x 0.25 cm
- Total Weight: 1.4kg
Battery
- Capacity: 20,100mAh, 72Wh
- Output: 5V/2A via waterproof M8
- Input: 5V/2A (Female 3.5x 1.1mm)
- Battery Type: Li-Ion NMC
- Protection: Short circuit over charge, over discharge, over temperature (45°C input, 60°C output cutoff), under temperature (0°C input, -15°C output cutoff)
- Always On Feature: Output remains on / recovers to power IoT devices
Solar Panel
Expected power output varies based on time of year, local weather conditions, orientation of panel, and shading factors.
Bracket
- BK103 - Large Solar Panel Bracket with horizontal and vertical pipe mounting options.
Other Included Items
- M8 to bare leads
- or M8 to USBC
The 10 Watt AxON Solar System is a seamless outdoor power supply, ready to use out of the box. The solar panel and V75 battery are integrated onto a custom mounting bracket.
The system is designed for 5V devices with power consumption up to 1 Watt continuous. The base system includes:
- Waterproofed V75 USB battery pack (20,100mAh 72Wh)
- 10 Watt high-efficiency solar panel
- Universal bracket mount
- Output cable that provides power and battery voltage data
Size and Weight
- Solar Panel: 22.3 x 27.4 x 0.4 cm
- Waterproof Battery: 16.7 x 9.5 x 3.7 cm
- Bracket: 33.7 x 27.4 x 0.25 cm
- Total Weight: 1.4kg
Battery
- Capacity: 20,100mAh, 72Wh
- Output: 5V/2A via waterproof M8
- Input: 5V/2A (Female 3.5x 1.1mm)
- Battery Type: Li-Ion NMC
- Protection: Short circuit over charge, over discharge, over temperature (45°C input, 60°C output cutoff), under temperature (0°C input, -15°C output cutoff)
- Always On Feature: Output remains on / recovers to power IoT devices
Solar Panel
Expected power output varies based on time of year, local weather conditions, orientation of panel, and shading factors.
Bracket
- BK103 - Large Solar Panel Bracket with horizontal and vertical pipe mounting options.
Other Included Items
- M8 to bare leads
- or M8 to USBC
